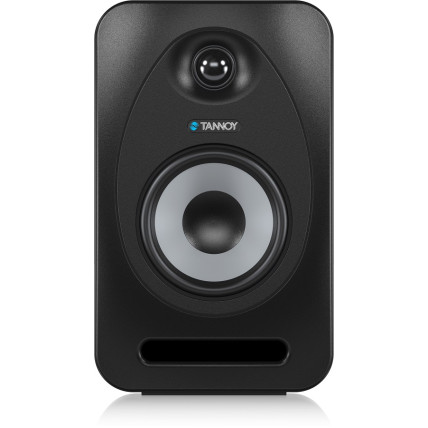

Tannoy Reveal 402 Studio Monitor

Tannoy Reveal 402 – Compact Studio Monitor with Precision Stereo Imaging

A reference monitor built for desktop setups and personal studios – engineered for clarity and connectivity.

✅ 70 W bi-amped design – impressive sound from a small enclosure
✅ 4" high-efficiency LF driver for deep, controlled bass
✅ ¾" soft-dome tweeter with poke-resistant protection for detailed highs
✅ Front-firing bass port – allows placement near walls
✅ Wide stereo sweet spot – consistent image even while moving
✅ Aux Link – stereo pairing with mobile devices (cable included)
✅ Adjustable HF EQ: -1.5 dB / 0 / +1.5 dB
✅ Rubberized foam base for acoustic decoupling
✅ XLR, ¼" TS, and ⅛" Aux inputs – versatile connection options

Specifications:
• Frequency Response: 56 Hz – 48 kHz
• Max SPL: 101 dB
• Drivers: LF – 4” (100 mm), HF – ¾” (19 mm)
• RMS Output: 50 W (LF – 25 W, HF – 25 W)
• THD: < 0.9 %
• Crossover Frequency: 2.8 kHz
• Inputs:
 – Balanced XLR (20 kΩ)
 – Unbalanced ¼” jack (10 kΩ)
 – ⅛” stereo Aux In + Link Out
• Dimensions: 240 × 147 × 212 mm
• Weight: Not specified
